Description

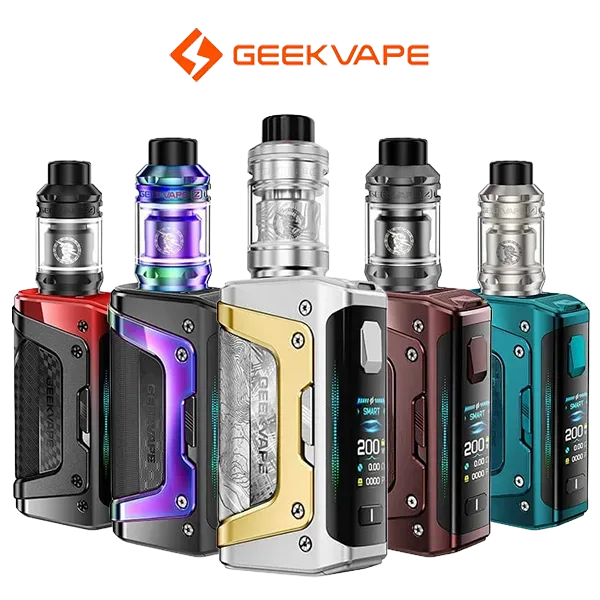

The Geekvape Aegis Legend 5 Kit is the fifth generation of Geekvape’s flagship dual-battery box mod, pairing a 200W Aegis chassis with the Z Sub-Ohm Tank. Powered by two external 18650 batteries (sold separately), the mod fires from 5 to 200 watts on the AS Chip 4.0 buck-boost chipset with a 0.01-second firing speed, up to 45A of output current and a 12V output ceiling. It carries the full IP68 rating the Aegis line is known for, protecting the device against water, dust and drops, and is built for vapers who want big power and a mod that survives real-world use.
A 1.08-inch TFT color screen with dynamic lighting feedback sits behind the fire bar, with ECO, SMART, NORMAL, CUSTOM, TC, Boost and Memory modes covering everything from battery-stretching efficiency to power-curve tuning and temperature control. The mod supports atomizers from 0.1 to 2.0 ohms and includes an A-Lock safety switch that physically prevents accidental firing in a pocket or bag. The Z Sub-Ohm Tank delivers up to 5.5mL of e-liquid (2mL TPD glass also supplied), fills from the top and uses top adjustable airflow to minimize leaking. It ships with two Z Series XM Boost mesh coils: a low-resistance high-wattage coil pre-installed (Z0.15 XM 0.15Ω at 70-85W, or Z0.2 XM 0.2Ω at 70-80W with the Z Sub-Ohm Tank 5) plus a spare Z0.4 XM 0.4Ω rated 50-60W, and accepts the entire Z Series coil range.
The chassis measures 56mm wide by 146mm tall and combines a laser-etched metal frame with a textured grip panel, giving the Legend 5 its rugged, hand-filling feel without excess bulk. Charging is handled through a USB Type-C port, and each kit includes a spare glass tube, spare parts pack, Type-C cable and user manual. Colors offered: Aurora Rainbow, Carbon Black, Earth Brown, Frost Silver, Glacier Green, No. 10 Everest Sunrise, Racing Gold, Turbo Red and Twilight Blue.
Geekvape Aegis Legend 5 Kit Compatible With:
Geekvape Z Series Coils (Z0.15, Z0.2, Z0.25 Dual, Z0.4)
Geekvape Z Series XM Boost Coils (Z0.15 XM, Z0.2 XM, Z0.4 XM)
Geekvape Z Sub-Ohm Tank 5
Geekvape Z Sub-Ohm Tank 2021
Geekvape Z Sub-Ohm Tank 5 Replacement Glass (5.5mL / 7mL / 2mL)
Geekvape Aegis Legend 5 Kit Key Features:
Battery: Dual external 18650 (batteries not included)
Output Power: 5-200W; max 45A output current, max 12V output; AS Chip 4.0, 0.01s firing speed
Modes: ECO / SMART / NORMAL / CUSTOM / TC, plus Boost and Memory modes
Tank Capacity: Z Sub-Ohm Tank, 5.5mL (2mL TPD glass included); top push-to-fill, top adjustable airflow, 810 drip tip
Included Coils: 2x Z Series XM Boost mesh coils: pre-installed Z0.15 XM 0.15Ω (70-85W) or Z0.2 XM 0.2Ω (70-80W) depending on tank version, plus spare Z0.4 XM 0.4Ω (50-60W)
Coil Compatibility: Full Geekvape Z Series coil range (Z0.15, Z0.2, Z0.25 Dual, Z0.4, Z0.15/Z0.2/Z0.4 XM); mod supports 0.1-2.0Ω
Charging: USB Type-C
Display: 1.08-inch TFT color screen with dynamic lighting feedback
Durability Rating: IP68 water, dust and shock resistant; A-Lock safety switch
Materials & Dimensions: Laser-etched metal chassis with textured grip; 56mm (W) x 146mm (H)
Colors: Aurora Rainbow, Carbon Black, Earth Brown, Frost Silver, Glacier Green, No. 10 Everest Sunrise, Racing Gold, Turbo Red, Twilight Blue
Click Here to Shop All the Geekvape Products

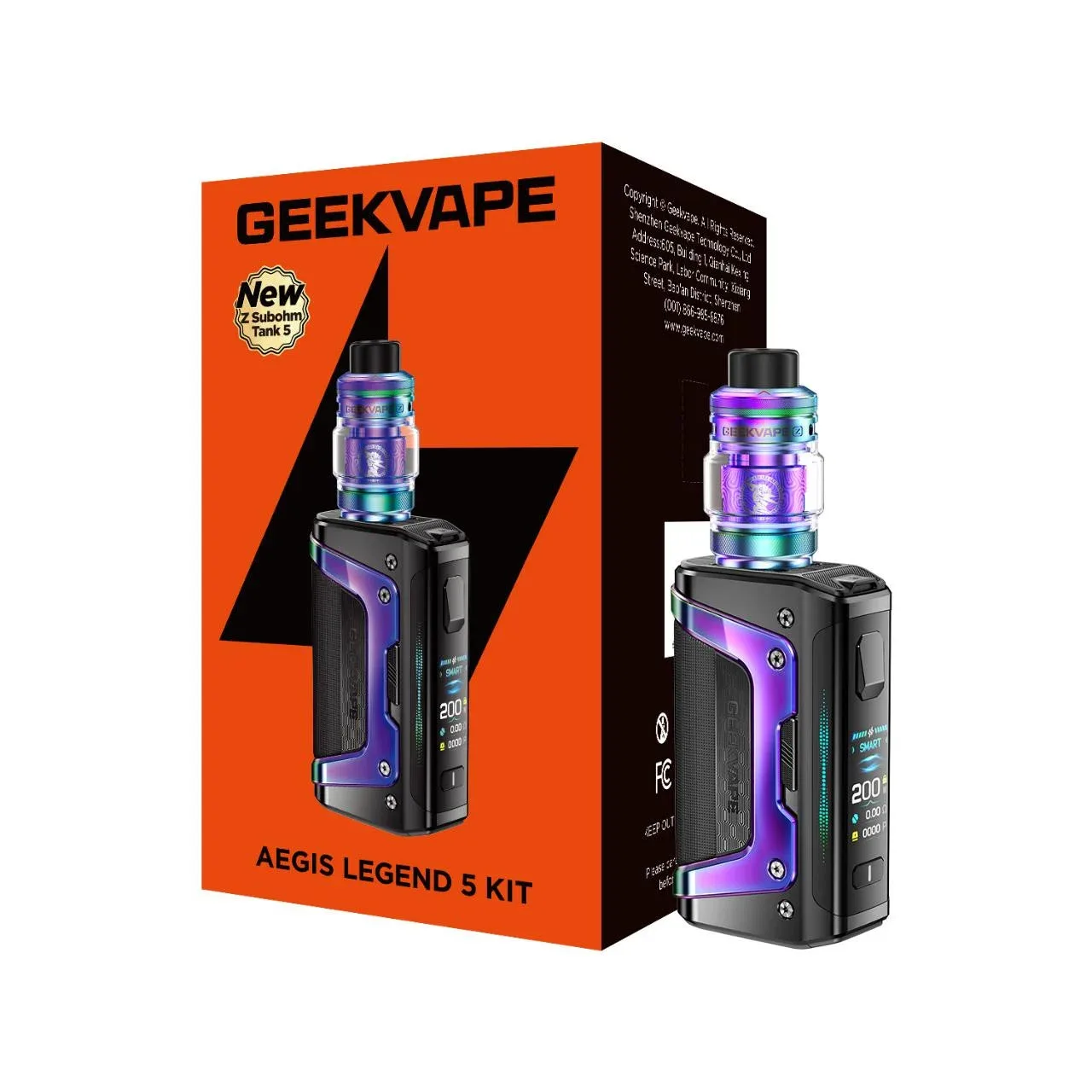

Geekvape Aegis Legend 5 Kit Purchase Includes:
1 x Geekvape Aegis Legend 5 Kit
